Note all pistons are sold with circlips.
 |

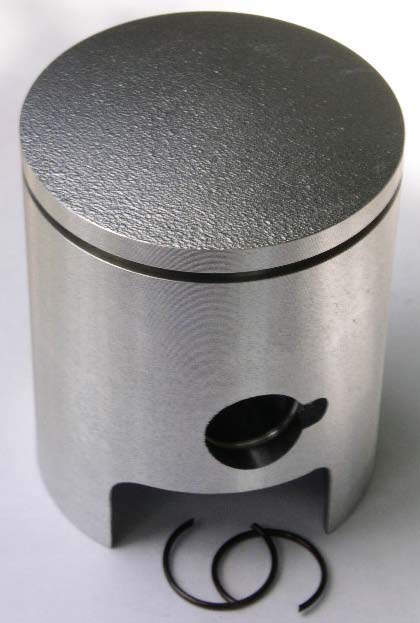

PJ001 - Piston KT100J STD
- To suit Yamaha KT100J for AKA and AIDKA racing applications.
- Size increments 0.05mm between Æ50.0 and Æ50.75 then 0.01mm increments above Æ50.75mm
- Ring to suit is p/n PRJ001
|
|
PJ002 - Piston KT100J Big To suit Yamaha KT100J for speedway racing applications.
Sizes are made to order for a range between Æ52.0 and Æ53.0
Ring to suit is p/n PRS001 |
|
PS001 - Piston KT100S Std
|
|
PS002 - Piston KT100S STD 53.02 to 53.5
- To suit Yamaha KT100S and ARC SPEC100 for AIDKA and Speedway racing applications
- Sizes are made to order for a range between Æ53.02 and Æ53.5
- Ring to suit is p/n PRS001
|
|
PS003 - Piston KT100S STD 53.75 and above
- To suit Yamaha KT100S and ARC SPEC100 for AIDKA and Speedway racing applications
- Sizes are made to order for a range between Æ53.75 and Æ55.0
- Ring to suit is p/n PRS002
|
|
PS004 - Piston KT100S Special
- For custom applications for AIDKA and Speedway racing applications
- Custom options include:
- High Ring
- Rotated Anti Rotation Pin for reeds and rotaries
- Dykes rings
- Sizes are made to order
- Rings to suit are dependant on application
|
|

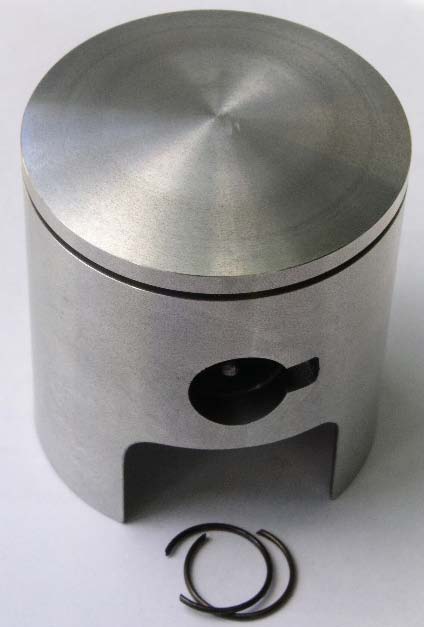

PSS001 - Piston KT100S Smooth Finish
- Smooth piston skirt finish
- To suit Yamaha KT100S and ARC SPEC100 for AKA racing applications
- Size increments 0.05mm between Æ52.0 and Æ52.75 then 0.01 increments above Æ52.75mm
- Ring to suit is p/n PRS001
|
|
